What's Wrong with this Application? #10

by
Jennifer D'Alessandro
| Nov 05, 2015

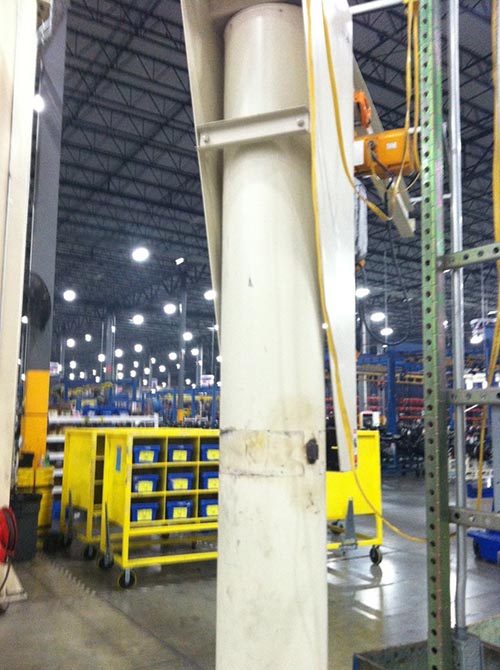

This image is posted in the What's Wrong section of our Dealer Training slides. This helps show our distributors, who also may also install products, an example of a typical issue when installing Free Standing Jib Cranes. Can you tell us what the issue is and what problems it would cause?

whatwrong10
Show oldest on top

2 comments

Leave a comment
  1. Duane Young | Nov 24, 2015
    The power cord WILL get pinched at the rotational stop.
  2. Mark | Nov 23, 2015
    The stop blocks are incorrectly located and can potentially cause damage to the trunnion roller assembly.  A rotation stop should have been installed on the head’s safety channel and the stop blocks installed to contact it.
