Capacity

Up to 310 lbs / person

Span

8 ft to 30 ft Clear

Max Support
Centers

Up to 50 ft

Number of
People

Up to 2

Adaptability

Collapsible

Track Type

Plain

Fall Protection Systems - Swing Arm System

VIDEOS
PHOTOS
Fall arrest solutions and protection systems Fall Arrest Swing Arm
"The Gorbel tether system, I really like it for the fact that you have that sense of security and safety up there. An easy slip can happen anytime. Our guys have been safe since we started using it. We haven't had any incidents."

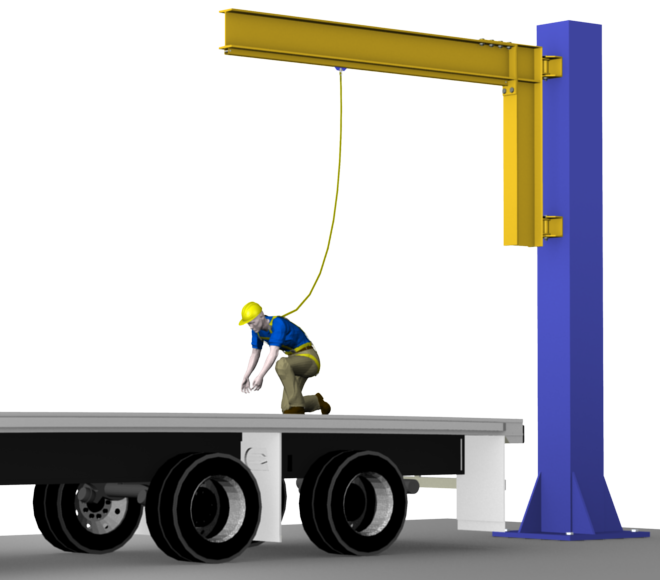

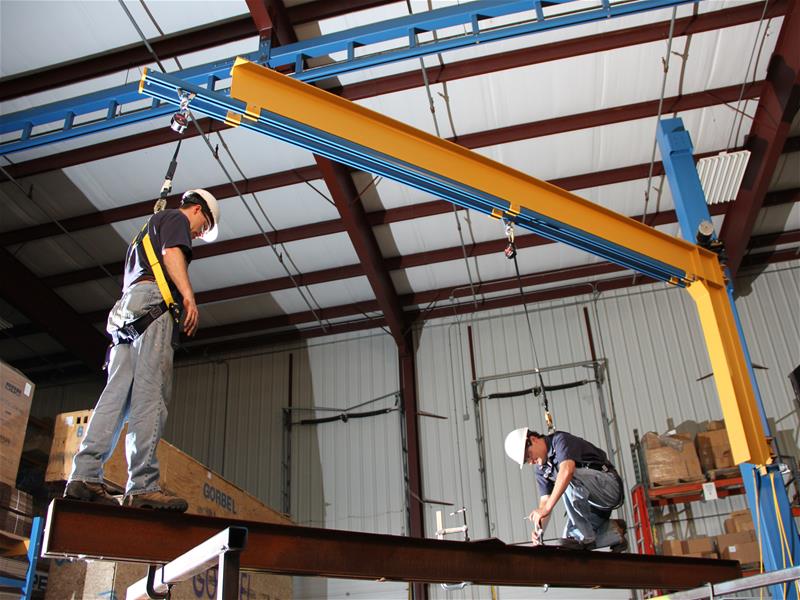

  • Swing arm fall protection systems provide circular or semicircular fall protection with a compact footprint
  • Versatile and adaptable; the swing arm can be positioned over the work space when needed and moved out of the way when not in use
  • Standard arm lengths from 8’ to 30’; custom spans available upon request
  • Designed by qualified engineers to meet the OSHA safety standards including the OSHA 1926 Subpart M Construction, ANSI Z359 Fall Protection Code, and NIOSH guidelines
  • These fall protection systems are designed for workers up to 310lbs with tools when used with 900LB Average Arresting Force (AAF) energy absorbing lanyards, properly rated full-body harnesses and connecting device
  • Per OSHA regulations, up to 420 lbs capacities can be accommodated. Inquire with our customer service group.

Options:

  • Wall Mounted, Column Mounted, or Free Standing Designs
  • Available in Wall Cantilever, Wall Bracket, and FS300 Configurations

Accessories (Add-Ons):

  • Friction brake for system positioning
  • Motorized rotation available
  • Special finishes available based on application requirements
  • Recover Trolley
  • Portable base for free standing units up to an 18' span
  • For work cells requiring access to overhead cranes
  • When floor space is limited
  • When infrequent fall protection is necessary
