Bridge Systems
Bridge Fall Protection System

5DayQuickShipIcon_small



yellowbar

CEILING MOUNTED SYSTEMS use the structure for support, as the rail is mounted either perpendicular or parallel to the ceiling beams. Should overhead obstacles be present, drop rod hangers with sway bracing can be supplied so that the system avoids these obstructions.

FREE STANDING SYSTEMS may be preferred whenever floor space is readily available to install column supports, when changes in work practices are anticipated, and when a building structure isn’t available. The flexibility of free standing systems allows them to be easily modified and moved should processes or fall protection needs change.

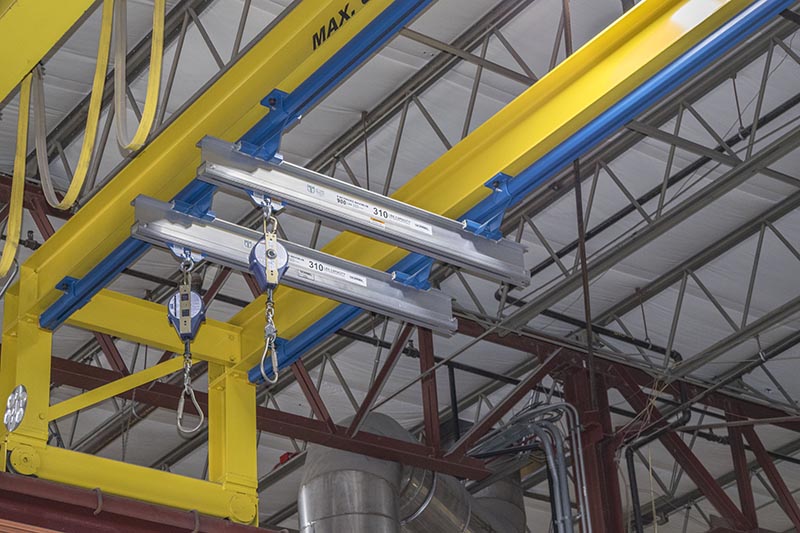

Multiple bridges can be supplied for both ceiling mounted and free standing systems, thus allowing multiple workers to utilize the system simultaneously.

thickRule
FEATURES & BENEFITS
openProductDetailsIcon
  • Rectangular coverage area
  • Up to 18' bridge spans
  • Consists of two runways and a traveling bridge for maximum coverage within a rectangular work area

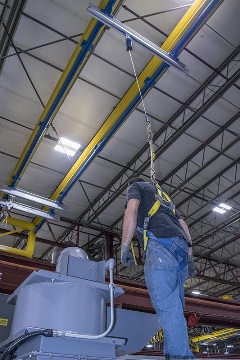

  • Lightweight aluminum bridge follows the worker, remaining directly overhead
  • Designed for workers up to 310 lbs. with tools when used with 900 lbs. Maximum Arresting Force (MAF) energy absorbing lanyards, properly rated full-body harness and connecting device
  • Multiple bridges can support several workers when properly zoned
  • Fall Clearance Calculations
  • Rectangular coverage area
  • Up to 18' bridge spans
  • Consists of two runways and a traveling bridge for maximum coverage within a rectangular work area
  • Lightweight aluminum bridge follows the worker, remaining directly overhead
  • Designed for workers up to 310 lbs. with tools when used with 900 lbs. Maximum Arresting Force (MAF) energy absorbing lanyards, properly rated full-body harness and connecting device
  • Multiple bridges can support several workers when properly zoned
  • Fall Clearance Calculations
thickRule
OPTIONS

closeMenuIcon

• Available in ceiling mounted or free standing designs
• Plain or trussed track runways based on support center requirements
• Unlimited runway lengths, with up to 18’standard maximum bridge spans - longer bridge lengths as custom if required (contact customer service)
• Multiple bridges can support several workers when properly zoned
• Motorized bridges • Special finishes available based on application requirements
• Recover Trolley

• Available in ceiling mounted or free standing designs
• Plain or trussed track runways based on support center requirements
• Unlimited runway lengths, with up to 18’standard maximum bridge spans - longer bridge lengths as custom if required (contact customer service)
• Multiple bridges can support several workers when properly zoned
• Motorized bridges • Special finishes available based on application requirements
• Recover Trolley
thickRule
APPLICATIONS

closeMenuIcon

• Enclosed track / easy movement and long life
• Rigid runways / superior load positioning – no movement or “crabwalking” of the bridge
• Ease of Installation / install on any standard 6" concrete floor
• Smooth rolling surface / Easier movement of bridge and trolleys
• Multiple track profiles and spanning capabilities/Adaptable, flexible, and cost competitive
• Enclosed track / easy movement and long life
• Rigid runways / superior load positioning – no movement or “crabwalking” of the bridge
• Ease of Installation / install on any standard 6" concrete floor
• Smooth rolling surface / Easier movement of bridge and trolleys
• Multiple track profiles and spanning capabilities/Adaptable, flexible, and cost competitive
thickRule
PHOTOS

customer tether track monorail Fall Arrest-single pole - Mast-Large Fall Arrest-Swing Arm-FS Bohl_Crane_FP_008 IMG_1791 Tether Track Ceiling Mounted Monorail_2 TT Freestanding Monorail.jpg (2) IMG_1785 IMG_0236 Fold Away Tether Track 2 CertainTeed - Single Pole Tether Track
thickRule
CASE STUDIES

closeMenuIcon

FileDownload
Cantilevered Monorail Tether Track System protects workers during truck loading process for a pipe manufacturer Download
Tether Track Fold Away System offers workers protection at heights during production of large mining machinery Download
Tether Track Monorails keep workers safe over conveyor systems Download
Tether Track Ceiling Mounted Monorail protects workers on hand rails, work platforms, and step stairs. Download
Tether Track Anchor System in hybrid bus maintenance facility. Download
Tether Track Dual Monorail Systems keep employees safe on top of RV's and coaches during maintenance. Download
