Capacity

Up to 10,000 lbs

Span

Circular to 30'

Height

N/A

Coverage Area
Type

Circular

Coverage Area

200°

Motorization

Yes

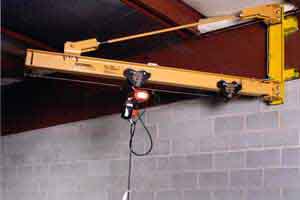

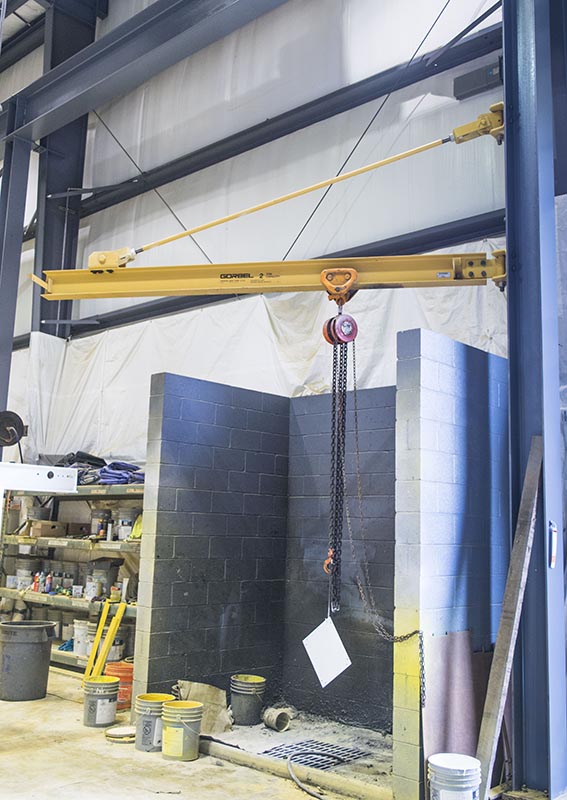

Wall Bracket Jib Crane

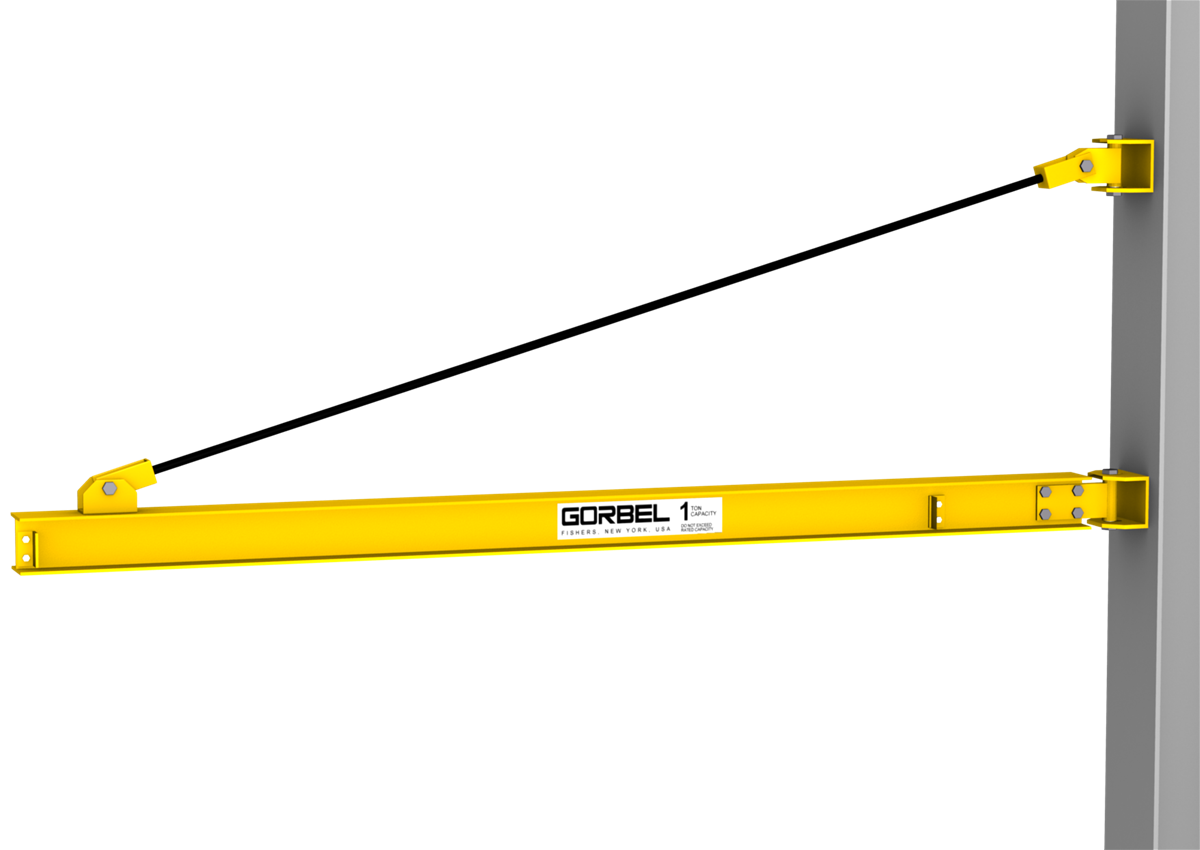

    Wall Bracket Jib Cranes are an economical, heavy duty solution. They contain a single tie rod, right hand threaded at both ends for easy boom adjustment and installation. These tie rod jibs are ideal for swinging around obstacles or under obstructions. Here are some key features of our Wall Bracket Jib Crane:

  • Low dead weight of the boom combined with bronze bushings and oil-impregnated bronze thrust washers provide for easy rotation and superior load positioning
  • Formed bracket fittings provide for greater reliability. No welds in tension, all bolts are in double shear for increased strength
  • Single tie rod, right hand threaded at both ends for easy leveling
  • All connections bolted, including movable bolted trolley stops
  • Grease fittings are provided for easy field lubrication

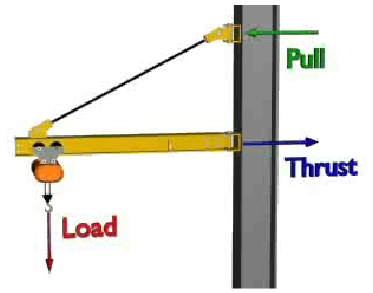

    • Prior to selecting a Wall Bracket Jib Crane for your application, two key requirements must be met. The jib crane needs a structurally adequate wall or column to support it. There must be sufficient clearance above the boom throughout its arc to accommodate the tie rod suspension.

VIDEOS
PHOTOS
– / 4
Image not found: /images/default-source/wall-bracket-jib-cranes/wb_100.tmb-small.jpg?Culture=en&sfvrsn=87931919_1
Image not found: /images/default-source/wall-bracket-jib-cranes/thrustandpull-wb.tmb-small.jpg?Culture=en&sfvrsn=9d670c19_2
Image not found: /images/default-source/wall-bracket-jib-cranes/wb10077096c36eb6e608cbd72ff000019dfa3.tmb-small.png?Culture=en&sfvrsn=63670c19_4
Image not found: /images/default-source/wall-bracket-jib-cranes/wb100.tmb-small.jpg?Culture=en&sfvrsn=52670c19_2
"When it came down to ease of use, it was by far Gorbel®, there was no one that was even close to having a system that worked as well or easy as the Gorbel® system."
View this story

Features & Benefits

  • Most economical means of providing hoist coverage for individual use in bays, along walls or columns of plants
  • Single tie rod, right hand threaded at both ends for easy boom adjustment and installation
Panel Footer

Options & Accessories

Options:

  • Custom Paint

Accessories (Add-Ons):

  • Tagline assemblies
  • Manual rotation stops
  • Motorized kits
  • Fusible disconnect switches
  • End stop kits
  • Download full list of Jib Crane Accessories
Panel Footer

Applications

  • Hoist coverage along walls or columns
  • Individual use in bays
  • Supplement to an overhead crane or monorail
