Capacity

165 to 660 lbs

Span

Up to 14 ft

Speed

Up to 180 ft/min

Coverage Area
Type

Circular

Coverage Area

360°

Input/Output

8 Sinking / 8 FET

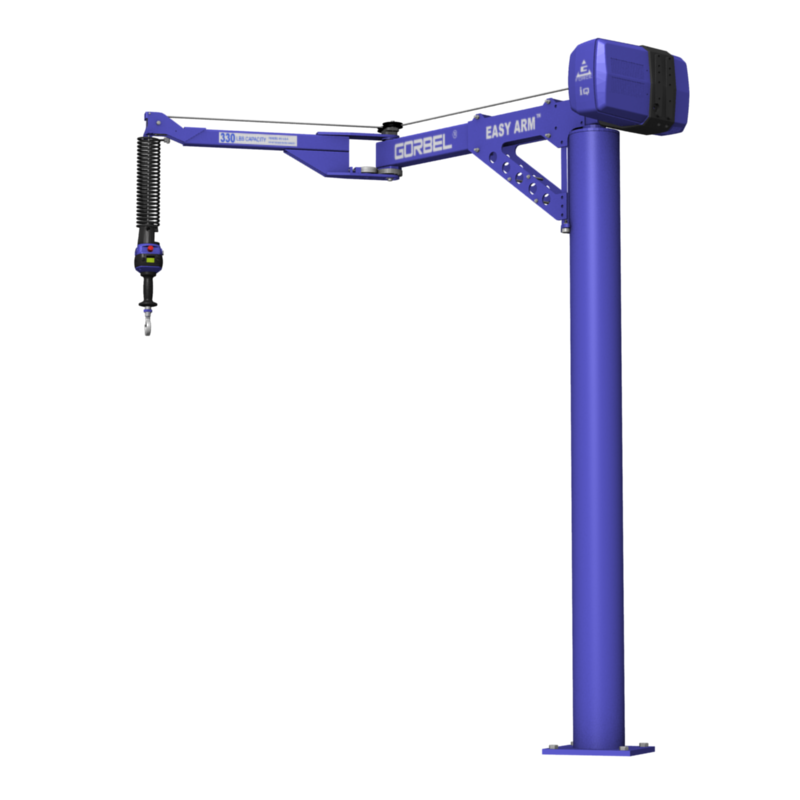

Free Standing Easy Arm

    The Free Standing Easy Arm® uses Gorbel®’s award winning G-Force® technology and integrates it into an articulating jib design for a turn-key plug and play lift assist device.

    Easy Arm® can be observed in areas such as high cycle pick and place applications, loading and unloading machine parts and working around machines or maneuvering parts around obstructions. Here are some key features of our Free Standing Easy Arm:

  • Free standing or portable mounting solutions that will allow you to move this lift assist device anywhere in your facility
  • Fully Integrated with Q2 and IQ2 G-Force® Intelligent Lifting Devices
  • For smaller work areas that require 14’ spans or less
  • Easy installation: Unit ships assembled and ready to be installed
  • Requires no special foundation for the 165 and 330. The 660 can be a foundationless installation up to 9' 6"
  • Easy relocation: The Easy Arm® is simply bolted to the floor
  • Cost effective turnkey solution

    • Read through articles on the benefits of utilizing Intelligent Assist Devices:

    View more articles on our Material Handling and Safety HUB

VIDEOS
PHOTOS

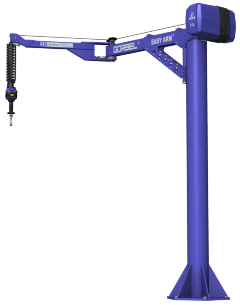

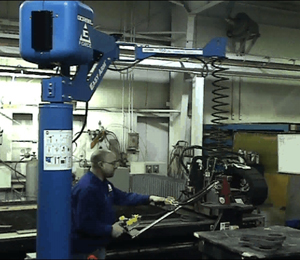

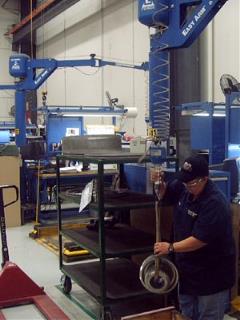

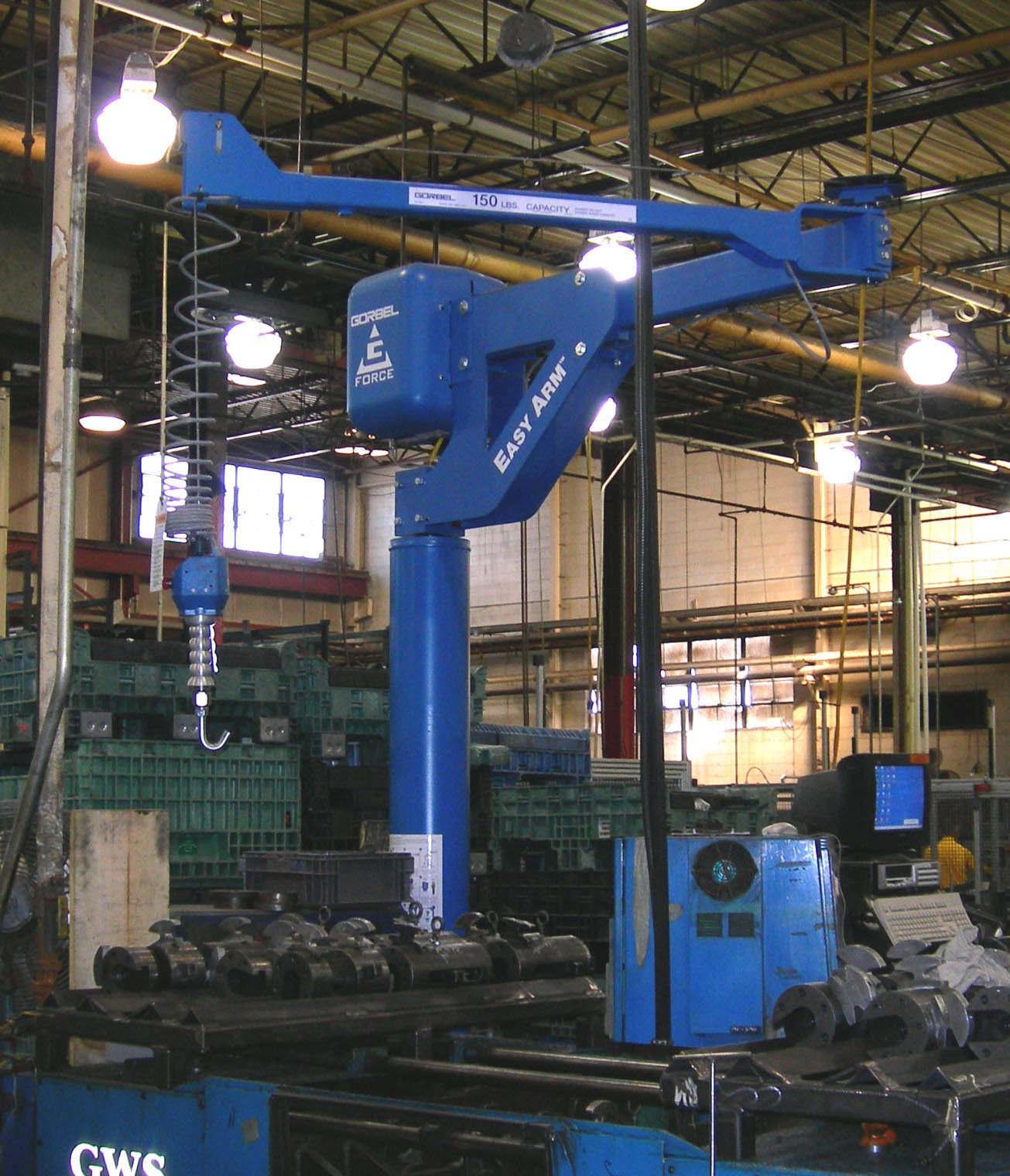

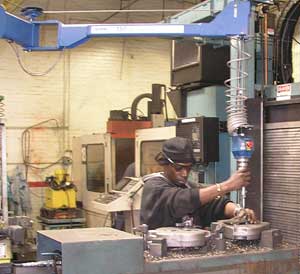

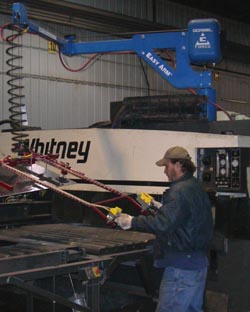

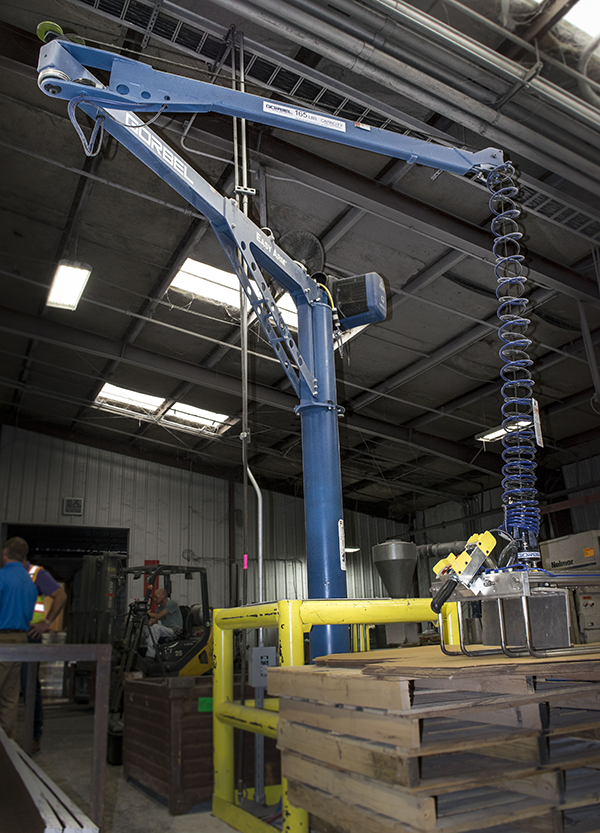

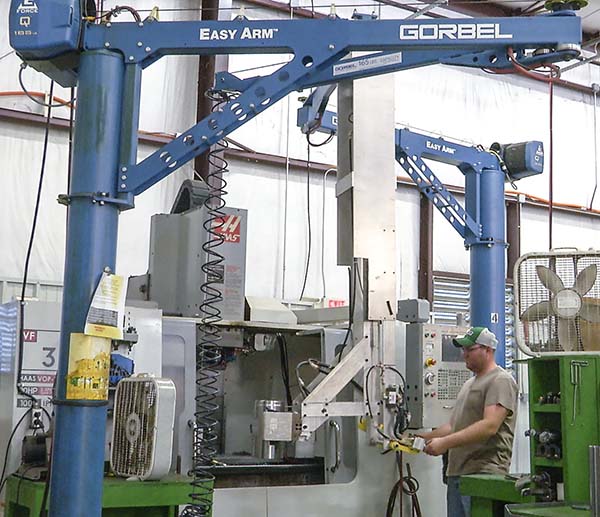

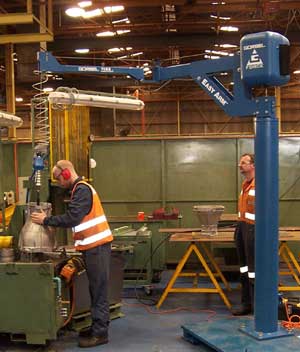

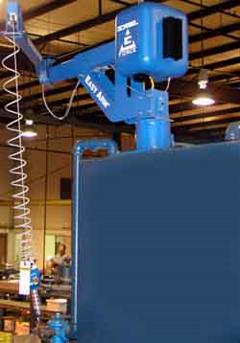

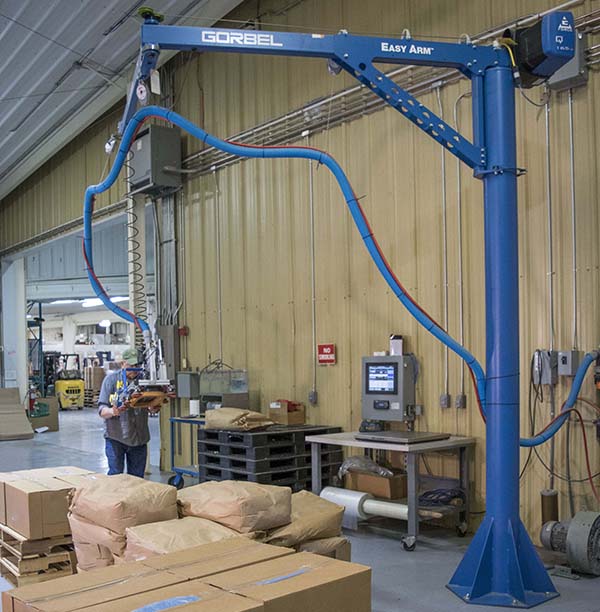

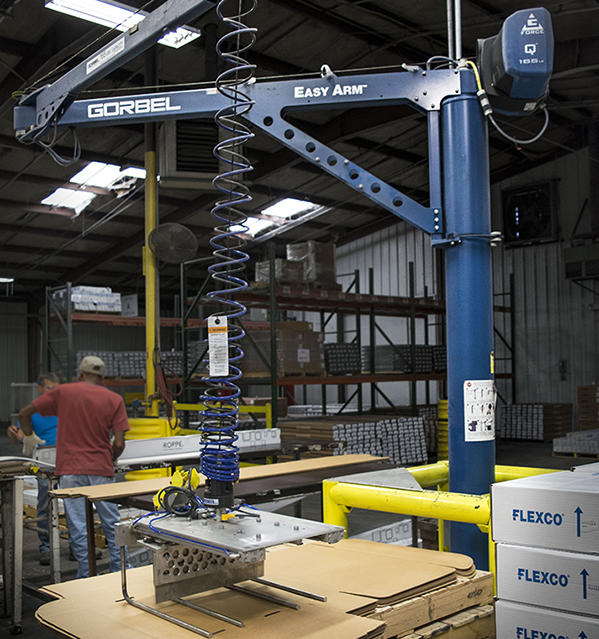

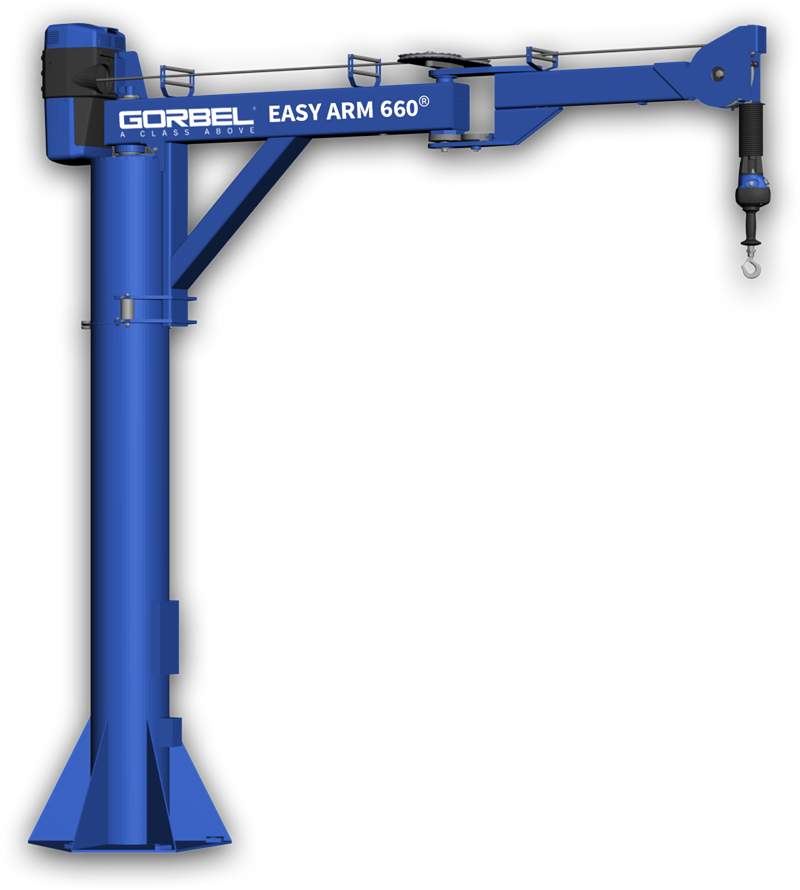

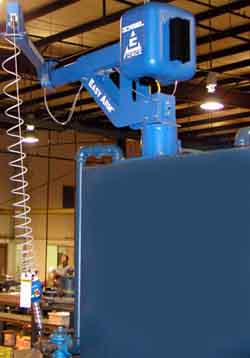

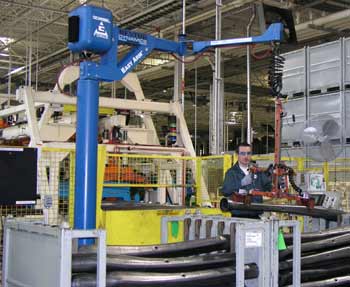

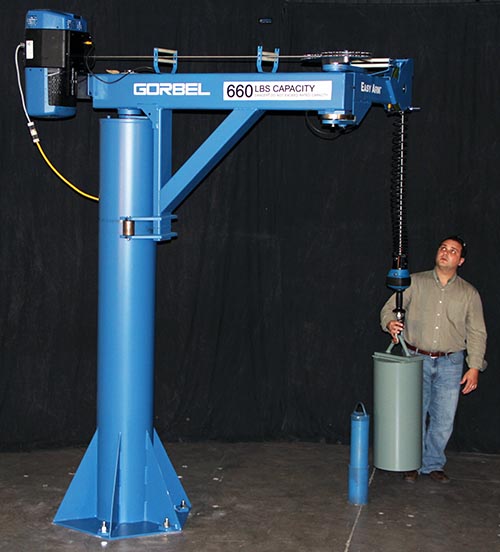

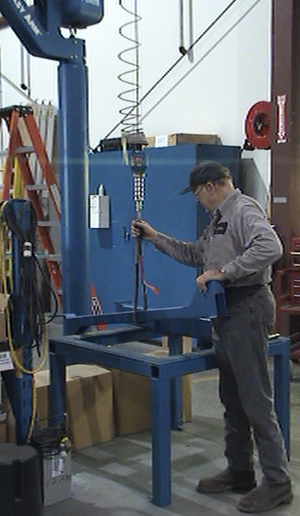

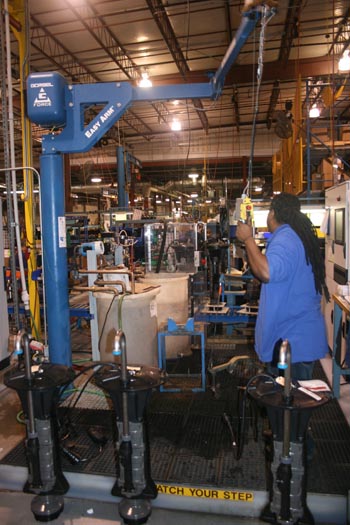

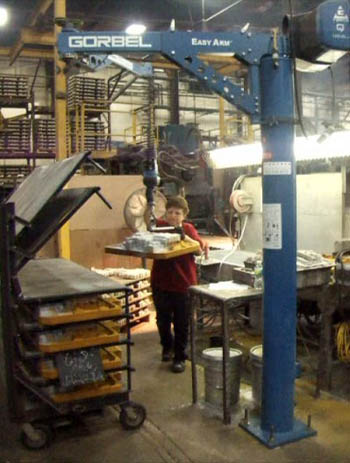

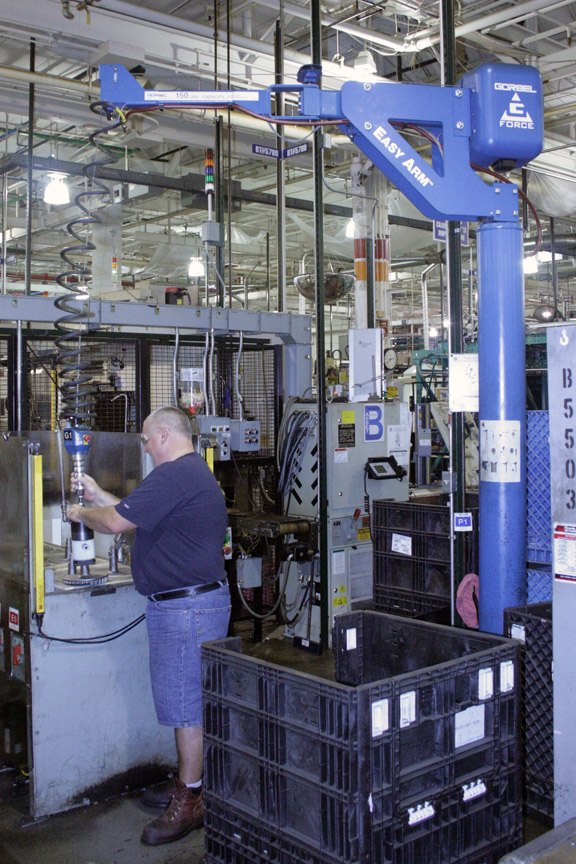

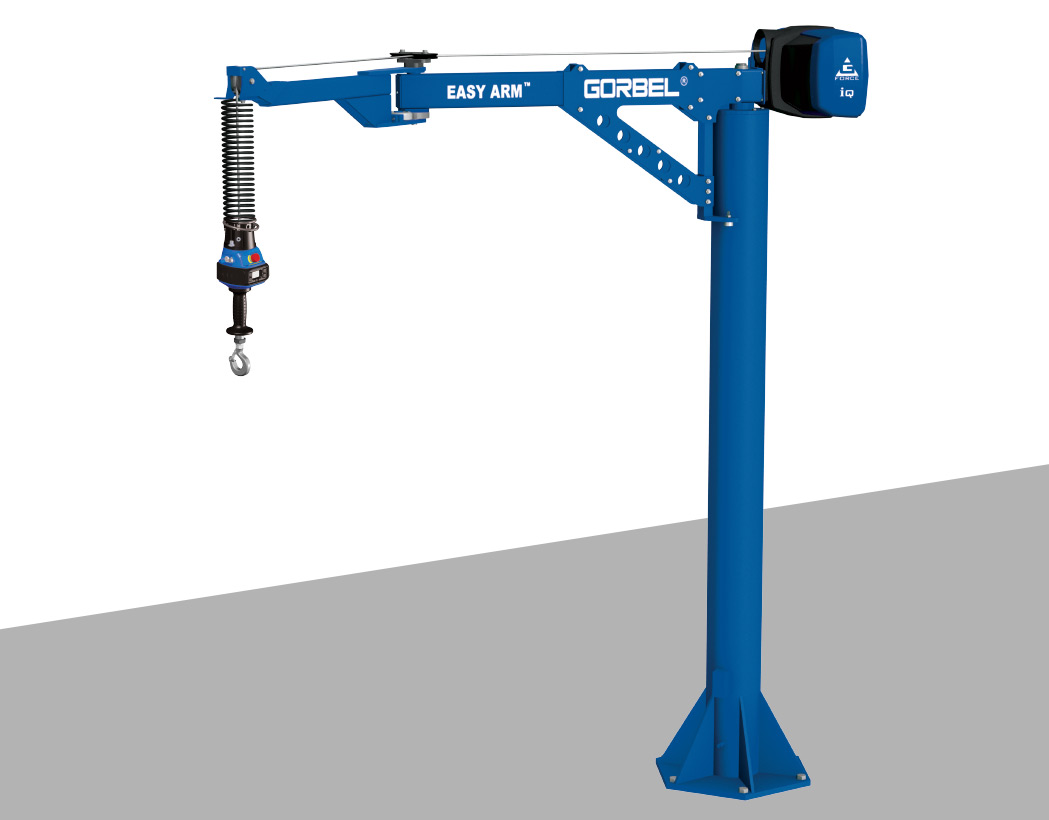

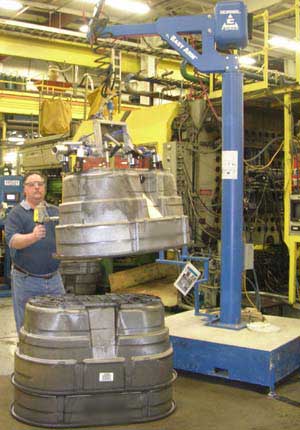

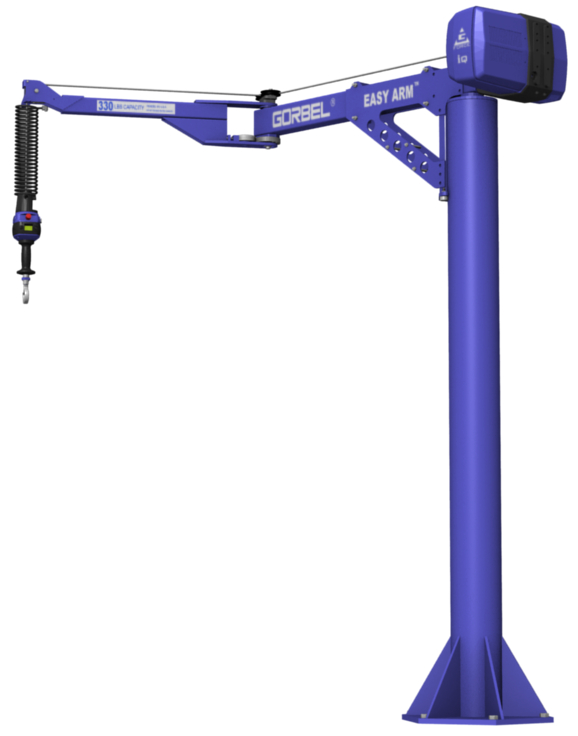

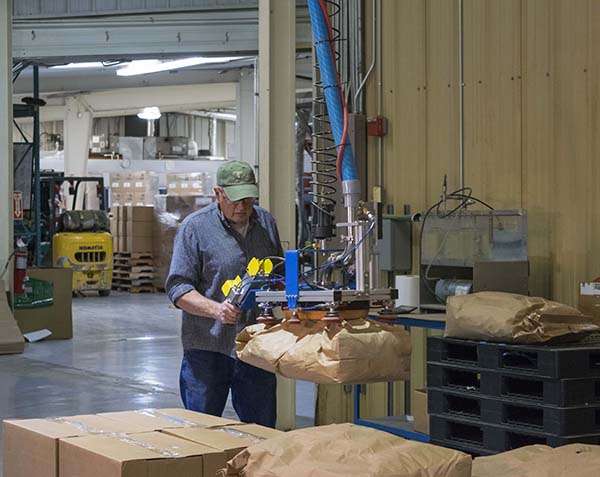

Easy Arm Easy Arm in food palletizing application Easy Arm in food palletizing application Easy Arm Intelligent Assist Device in Flooring Easy Arm Intelligent Assist Device in Palletizing 660 Easy Arm Intelligent Assist Device 660 Easy Arm Intelligent Assist Device Easy Arm Easy Arm in Automotive Application Easy Arm Intelligent Assist Device Easy Arm Intelligent Assist Device in Casting Application Easy Arm Intelligent Assist Device Easy Arm Intelligent Assist Device Easy Arm Intelligent Assist Device in Burn Table Application Easy Arm Intelligent Assist Device Easy Arm Intelligent Assist Device in Plastics Application Easy Arm Intelligent Assist Device in Brewery Easy Arm Easy Arm Intelligent Assist Device Easy Arm Easy Arm Intelligent Assist Device in Automotive Application Easy Arm in Casting Application Easy Arm Easy Arm Intelligent Assist Device Easy Arm Intelligent Assist Device in Food Application Easy Arm Intelligent Assist Device in Agriculture Application Rendering of Easy Arm Intelligent Assist Device Rendering of Easy Arm Intelligent Assist Device

Service Menu

G-Force G-Link Service Menu

Settings Menu

G-Force G-Link Settings Menu
Both the Q2 and iQ2 units feature an updated computer based visualization interface that makes configuring your unit a breeze. This wireless Smart Connect user interface can be used on a tablet or PC to monitor or configure system settings and parameters.
See how the G-Force Q2 and iQ2 compare
Q2 vs iQ2 Product Comparison Chart
Q2 & iQ2 Infographic
Q2 & iQ2 Videos
Standard Features Q

2

 iQ

2
Anti-recoil technology ✔ ✔
Infinite speed control ✔ ✔
Power loss protection ✔ ✔
Blazing speeds up to 200 fpm ✔ ✔
Operator present detection ✔ ✔
Capacity overload ✔ ✔
Float mode ✔ ✔
Pinpoint precision ✔ ✔
User settable load limiting ✔ ✔
G360 collector and air swivel ✔ ✔
OLED display ✔ ✔
Multiple language capabilities and on-screen handle display ✔ ✔
Seven different handle configurations ✔ ✔
Menu setting lock out feature ✔ ✔
User settable maintenance alerts ✔ ✔
Fault code history log ✔ ✔
G-Link Smart Connect IoT connectivity available ✔ ✔
Virtual limits 3 sets Multiple sets
24 volt DC power available at handle ✖ ✔
User configurable Inputs and Outputs on the handle ✔
(2 Inputs 2 Outputs) 		✔
(8 points that can be configured as inputs or outputs)
User configurable Inputs and Outputs at the actuator ✖ ✔
(8 dedicated inputs and 4 dedicated outputs)
Tablet or PC based wireless G-Link Smart Connect interface ✔ ✔
Anti-drop functionality for tooling control ✔ ✔
Auto-home ✔ ✔
"Float Mode makes this all possible,” said the Senior Manufacturing Engineer. “When we tried doing this manually, we could only get a few done per hour, and our people were exhausted. Now we can do 15-20 pieces per hour with just one operator who doesn’t get exhausted at all."
View this story

Features & Benefits

  • No special foundation required on 165 and 330
  • 660 - Easy, foundationless installation up to 9' 6"
  • Two pivot points make it easy to reach around obstacle or into machines
  • Unmatched precision
  • Float mode for exact positioning
  • G360™ air & electric collector swivel assembly prevents tangled cables
Panel Footer

Options & Accessories

Options:

  • iQ2 unit with added intelligence features
  • Slide, pendant, or force sensing handle options

Accessories (Add-Ons):

  • Portable Base
Panel Footer

Applications

  • Reaching into a work cell or around obstructions
  • Reaching under overhead obstructions such as exhaust hoods
  • Reaching into work cells/doorways
  • High cycle pick and place
  • Loading/unloading machined parts
  • Moving products around a work cell
Panel Footer
FileDownload
Easy Arm with float mode in paper roll core handling and change out Download
Underhung Easy Arms serving pump manufacturer well on paint line Download
Easy Arm™ enables older workers to continue working in engine inspection work cells. Download
Easy Arm™ helps in loading and unloading turbine motors for overhaul and repair. Download
Easy Arm™ protects pumps on test stand Download
Easy Arm makes automobile suspension installation easier Download
