Restuff-it™

    When in unload mode, the Restuff-it is capable of achieving similar results to the Destuff-it. It is capable of reducing unload times as well as demurrage charges, standby charges and drop trailer charges. The Restuff-it can reduce the number of doors needed for the unload operation by enabling more trailer turns per door.

    In loading mode, the ergonomic benefits of the Restuff-it are realized by using the operator platform to lift the worker to the proper position relative to the box wall. In addition to this ergonomic benefit, by increasing the accessibility to the top of the container, many users also realize an increase in cube utilization.

    The robust construction of each Restuff-it makes it an ideal loader and unloader for multi-shift operations.

Read through articles on the benefits of utilizing Portable Ergonomic Conveyor Systems:

View more articles on our Material Handling and Safety HUB

VIDEOS
PHOTOS

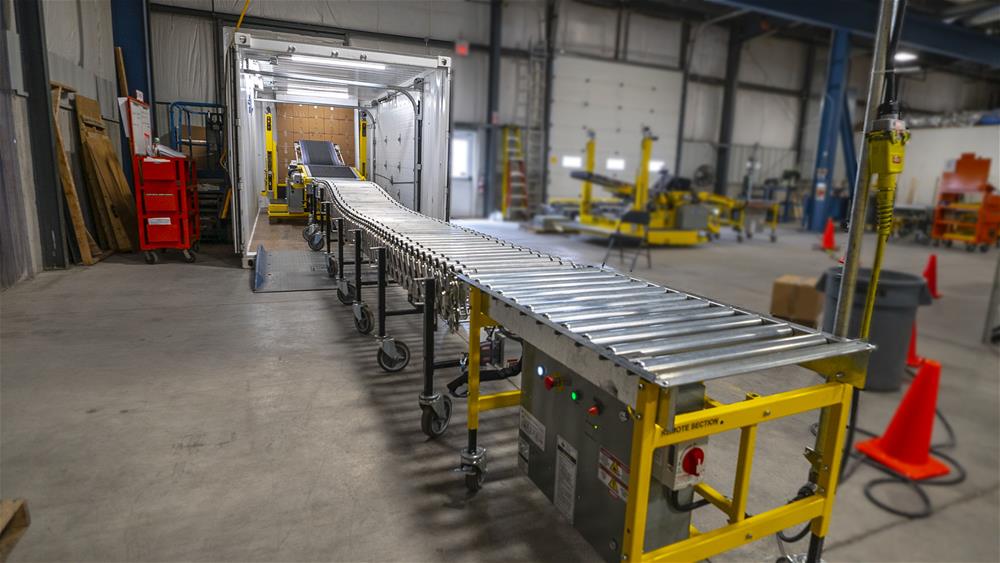

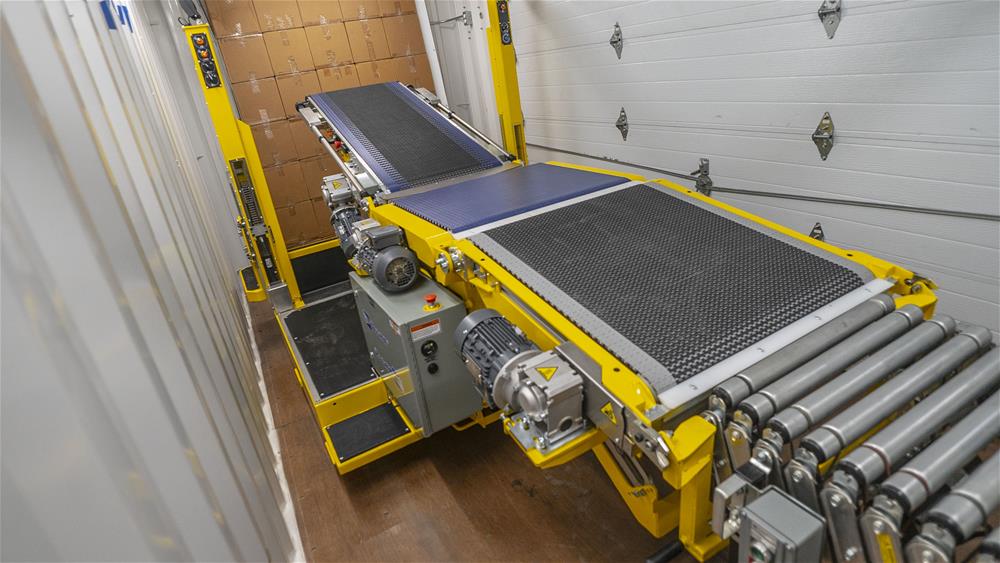

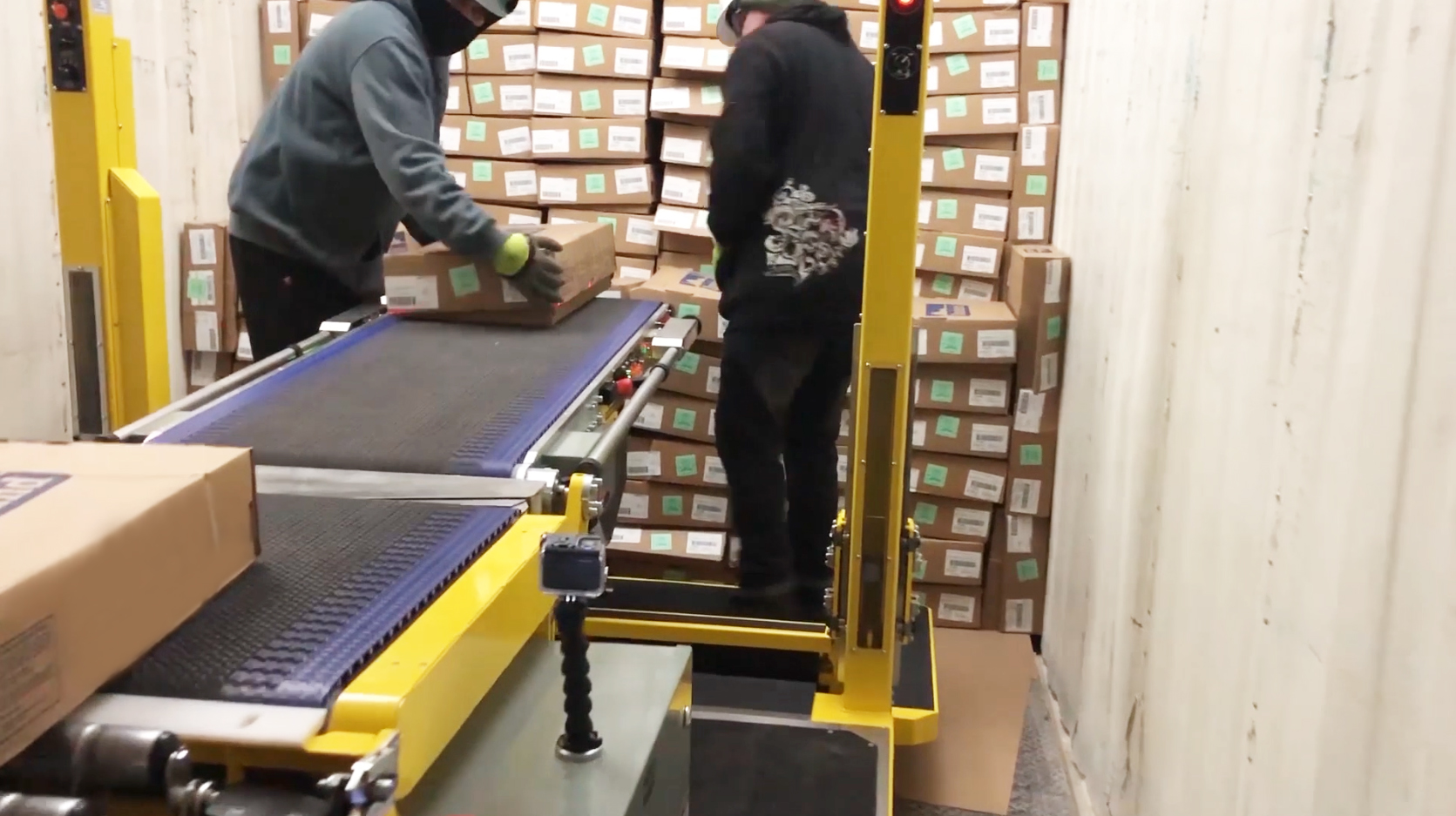

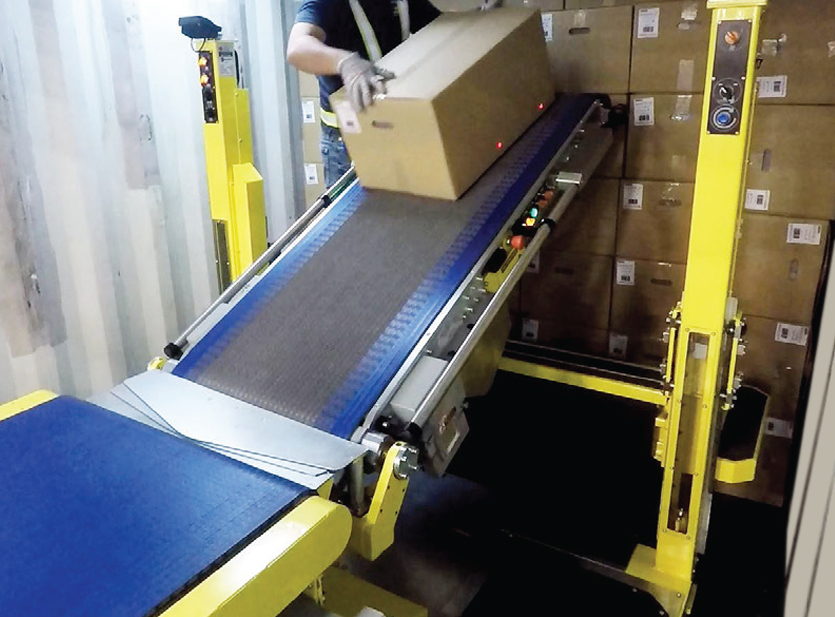

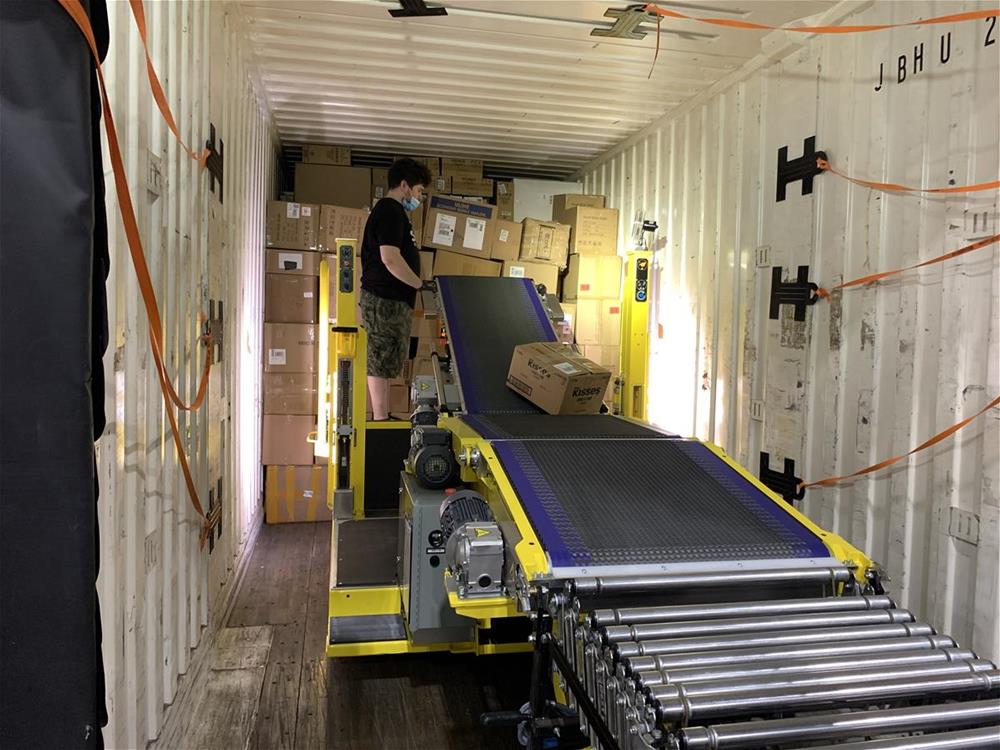

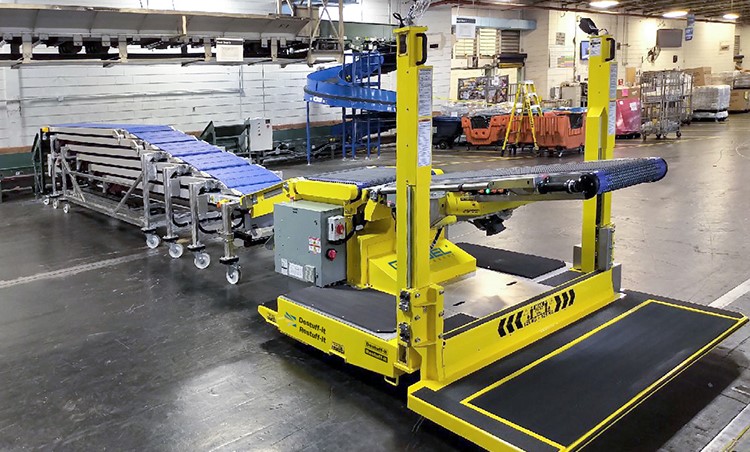

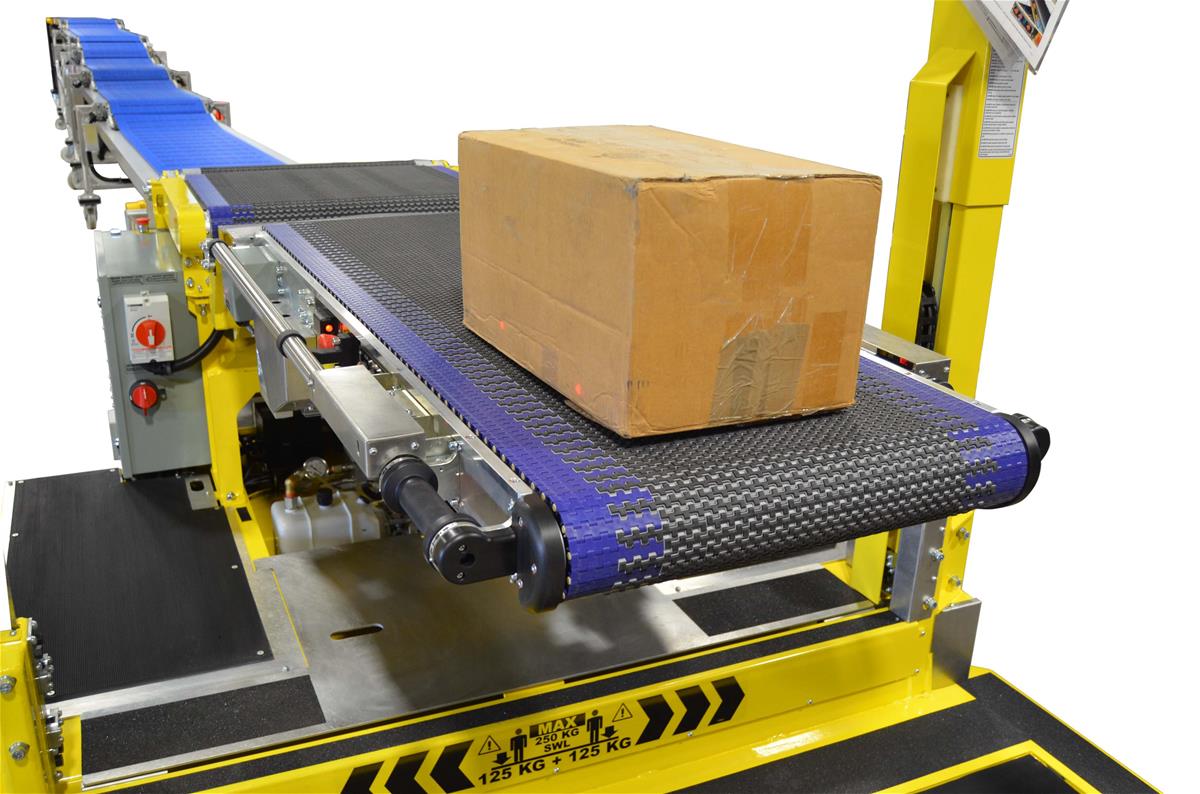

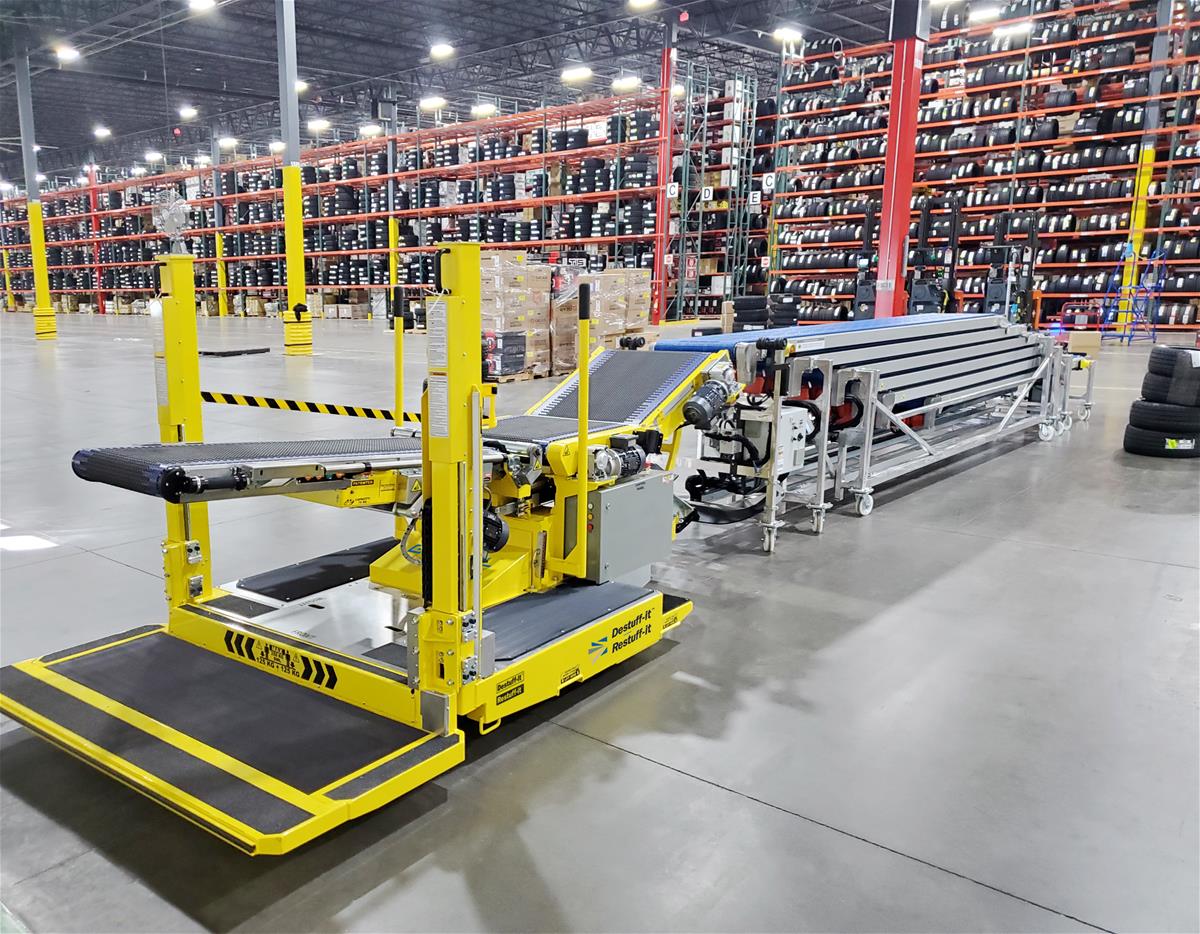

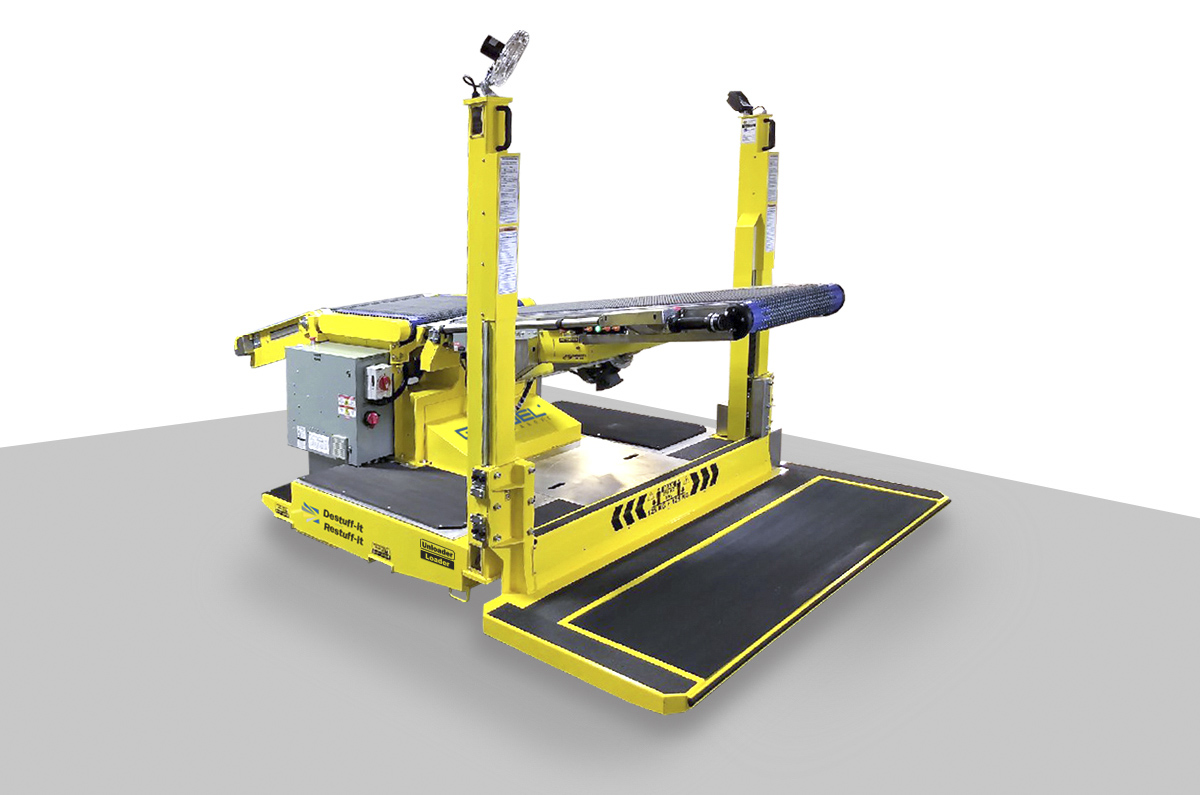

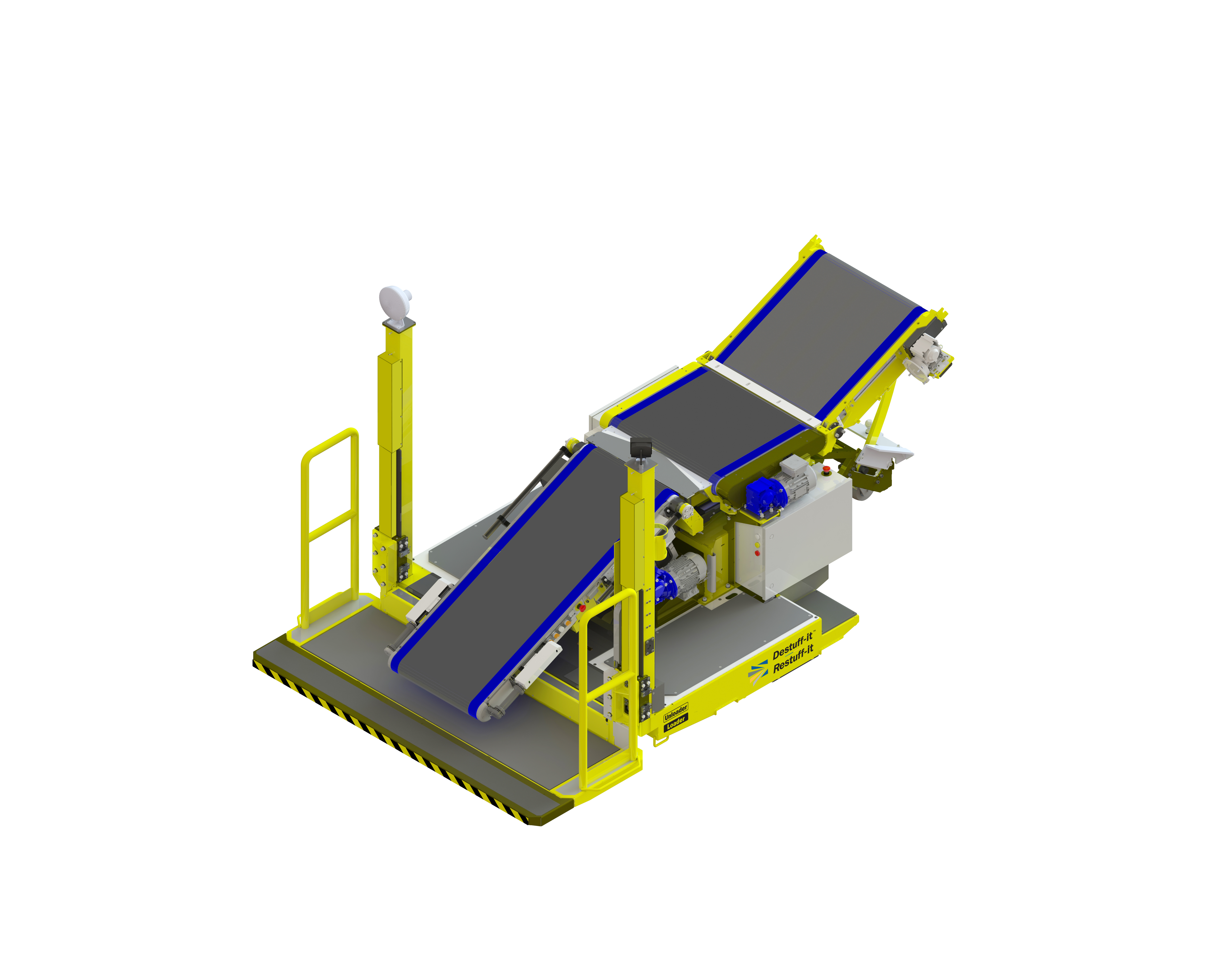

Restuff-it truck unloading Restuff-it Loading Boxes Restuff-it portable ergonomic conveyor system Restuff-it in container Restuff-it with flex conveyor in container Restuff-it Right hand side Restuff-it Dock Restuff-it machine Restuff-it Rendering Restuff-it tire loading and unloading
"Not only is Management happy with the operation of the machine, the guy's on the floor love it!"

Harold Beasley, Supervisor

  • The Restuff-it™ may be used for both loading and unloading due to its bi-directional modular conveyor belt.
  • The Restuff-it has 4 different restuffing/loading modes so operators can choose what loading method works best for their use.
  • Machine can be driven on battery power.
  • Integrated DC drive/steering system capable of negotiating dock leveler slopes and transition plates.
  • Easy to reach controls to travel forward, reverse, left and right.
  • Operator Platform capacity of 550 lbs, which supports a maximum of 2 operators, enables workers to get closer to the top of the box wall without the use of step stools. This results in greater cube utilization.
  • With Pivoting Conveyor belt capacity of 165 lbs, there are many types of product that can be moved.
  • Safety features included:  E-Stop buttons, Hand-present sensor on rotary handle, Pressure sensing safety mats, Operator pressure sensing mat, Front sensing edge, and 2 LED light strips on the mast.
  • Add-on Safety features include: Front/rear area scanners, Extended Operator platform, Safety guard rails, and Front sensing edge.
  • Additional add-on features include: Network integration, Dual-fan kit, Side guides, Cup holder on mast.
  • Solid, welded construction powder coated in a safety yellow.
  • Our Engineers are available to discuss your application and recommend the best solutions.
  • Cascading Belt Conveyor – The Restuff-it can be integrated with this robust, aluminum cascading belt conveyor developed for everyday use. The cascading table design allows for the conveyor to be contracted and stored in an area of less than 27 feet when not in use.
  • Powered Flexible Roller Conveyor – Powered flexible roller conveyor is the most common type of conveyor to integrate with the Restuff-it™. The Restuff-it™ is able to connect with various brands on the market today. A mechanical coupler connects the Restuff-it™ to the flexible conveyor and a quick-connect electrical coupler provides power and controls interface.
  • Telescopic Belt Conveyor – When the circumstance requires, the Restuff-it™ is capable of integrating with telescopic belt conveyors. This type of conveyor is preferred for tire handling and bag handling.
  • 3PL (third party logistics), importers/exporters, manufacturers, and distributers
  • Inbound/outbound warehouses that unload/load un-palletized boxes, furniture cartons, carpet rolls, tires, delicate/fragile product, bags, etc., into shipping containers or trailers.
