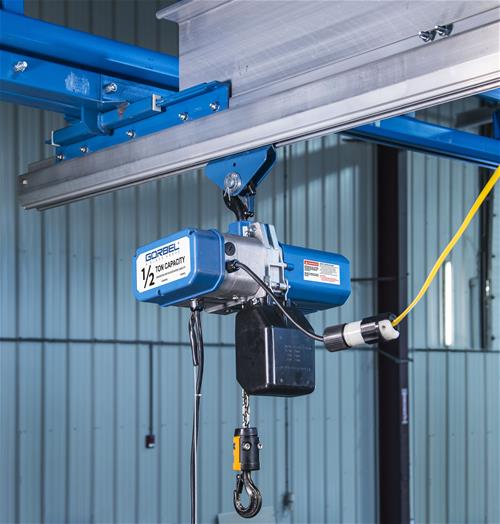

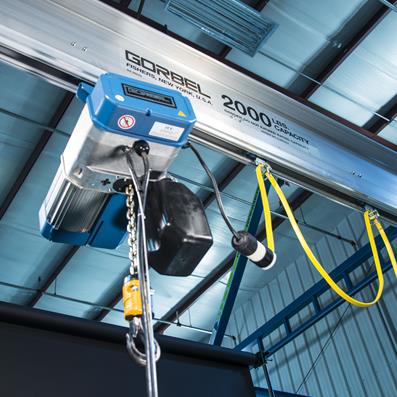

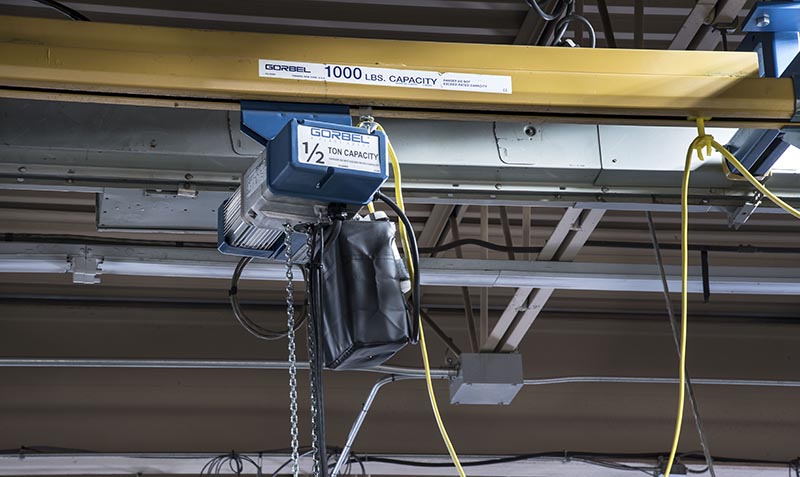

GSS 115 VAC Hoist

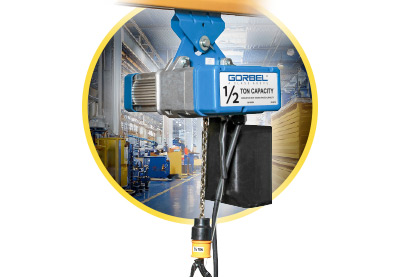

    The latest addition to the Gorbel GS Hoist line is the GSS 115 VAC single phase hoist featuring an optimized, cushioned start and stop for effortless lifting and gentle stopping.

    The new GSS 115 VAC Hoist conveniently operates on 115 single phase power and offers superior lifting control of the load.

    Users will immediately notice the difference in the way the GSS hoist handles a load and it’s unique positioning capabilities.

    • The unit is available in 1/4, 1/2, and 1-ton capacities to address a variety of lifting needs in medium-duty environments.
    • Featuring a preconfigured VFD, allowing a focus on positioning and optimal speed control.
    • A VFD based design eliminates contactors for long life and decreased maintenance.
    • Users will immediately notice the difference in the way the GSS hoist handles a load and it's unique positioning capabilities.

Read through articles on the benefits of utilizing Work Station Crane and Monorail Systems:

View more articles on our Material Handling and Safety HUB

GSS 115VAC Hoist Lifting Speed (fpm) Horse Power (Motor) Current (Motor) Number of Falls Weight (lbs)
1/8 ton 26 0.87 5.6A 1 37
1/4 ton 23 0.87 5.6A 1 37
1/2 ton 16 0.87 5.6A 1 37
1 ton 8 0.87 5.6A 2 47
VIDEOS
PHOTOS

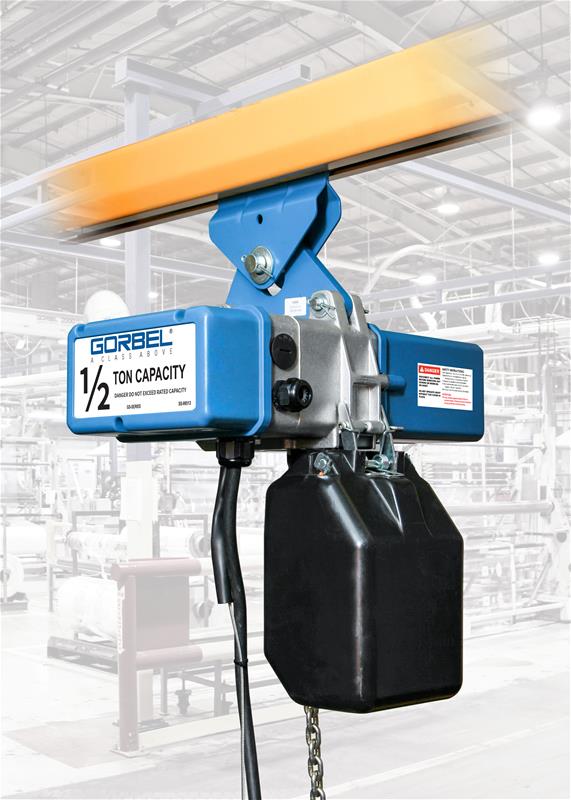

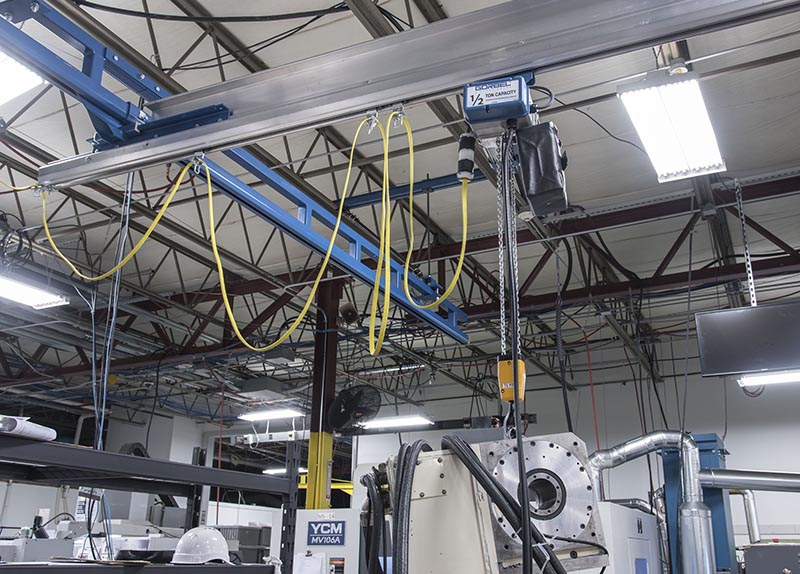

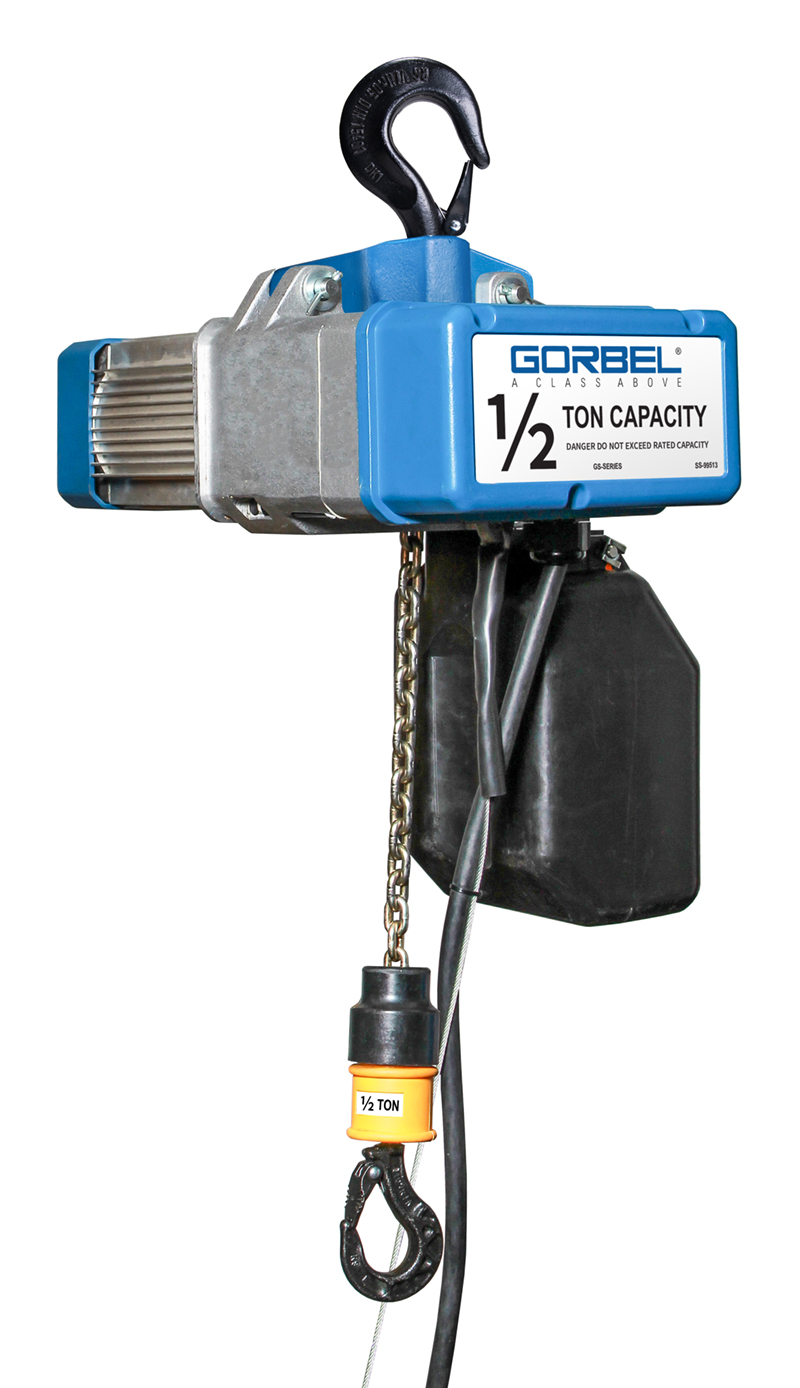

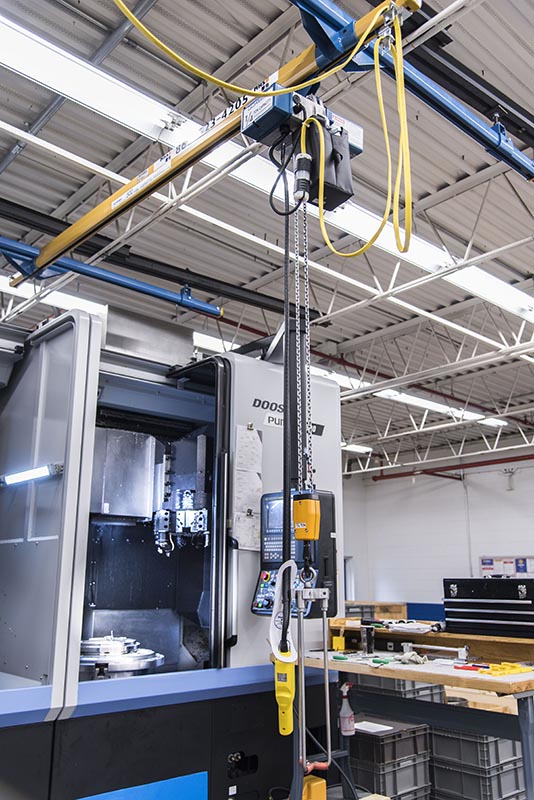

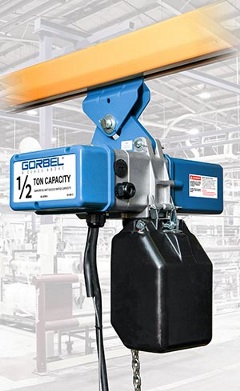

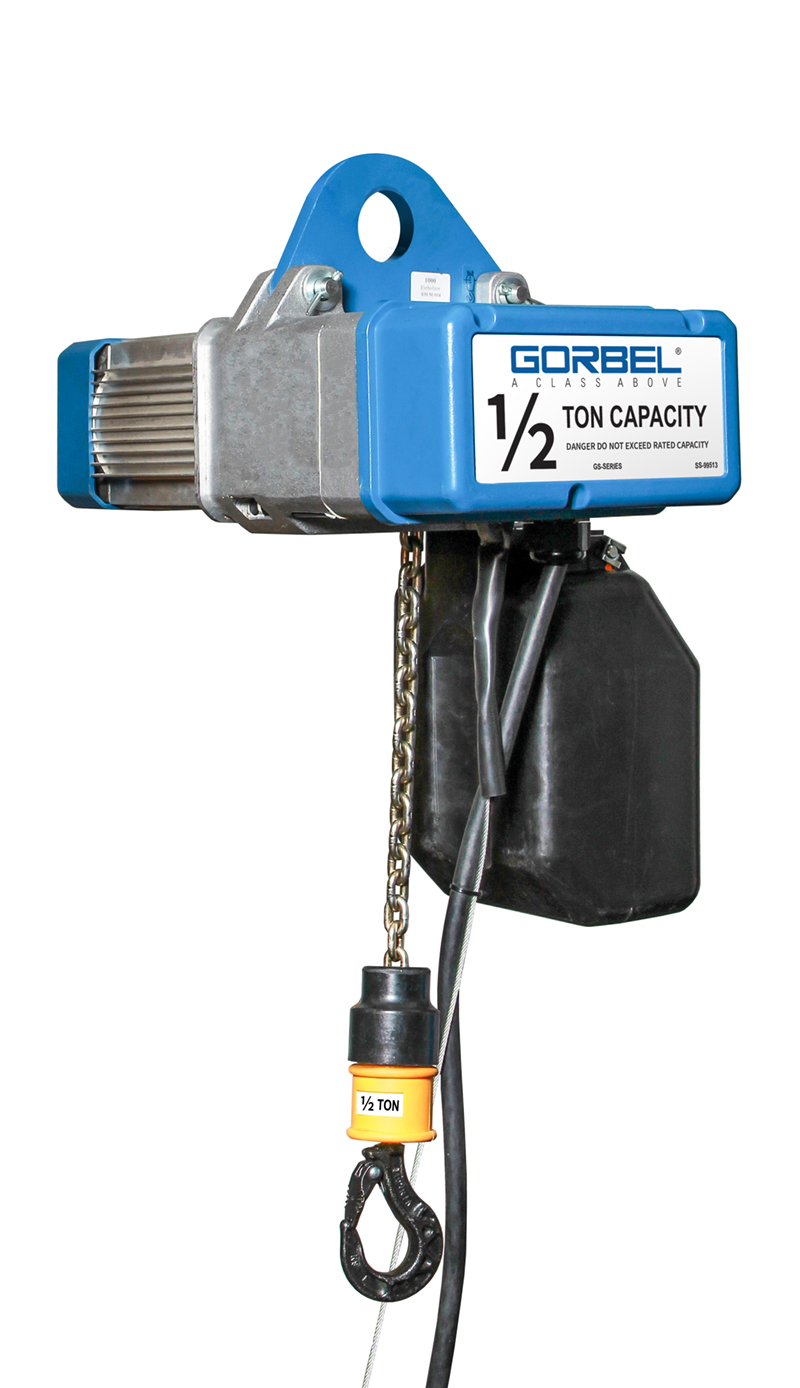

GSS 115VAC Hoist GS Series Electric Chain Hoist 1/2 Ton GS Series Electric Chain Hoist 1/2 Ton GS Series Electric Chain Hoist 1 Ton GS Series Electric Chain Hoist 1/8 Ton GS Series Electric Chain Hoist 1/4 Ton GS Series Electric Chain Hoist 1 Ton GS Series Electric Chain Hoist 2 Ton GS Series Electric Chain Hoist 1 Ton GS Series Electric Chain Hoist 1/4 Ton GS Series Electric Chain Hoist 1/2 Ton GS Series Electric Chain Hoist GS Series Electric Chain Hoist Hook Suspension Hook Suspension on 1/2 ton GS Series Electric Chain Hoist Single Hole Suspension Plate on 1/2 ton GS Series Hoist Electric Chain Hoist GS Series Electric Chain Hoist GS Series Chain Hoist Double Hole Suspension Plate Single Hole Suspension Plate Hook Suspension for GS Series Hoist Single Hole Suspension for GS Series Hoist Double Hole Suspension Plate for GS Series Hoist GS Series Electric Chain Hoist
"People in the shop are thrilled with the new systems. They’re a little upset they didn’t get them sooner,” said Morton. “I’ve actually used that system at a different company, I’m the one that told them to get it here! I liked it a lot where I was before, it’s just a great system."
  • Capacities from 1/8 to 1 ton
  • Load dependent lifting speed/higher speed at lower capacities
  • Compact design perfect for load headroom applications
  • All components fabricated at a single location for superior quality control
  • Suspension plates provide firm attachment with Gorbel Work Station Crane trolleys and I or W beams
  • Totally enclosed, fan cooled motor protects it from dust and other contaminants
  • Tested in accordance with ASME as well as FEM/ISO
  • Smooth, quiet operation
  • Easy installation and relocation to keep up with the changing needs of your plant floor

Options:

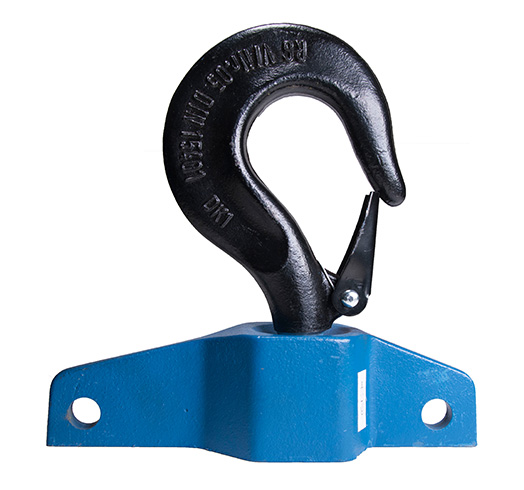

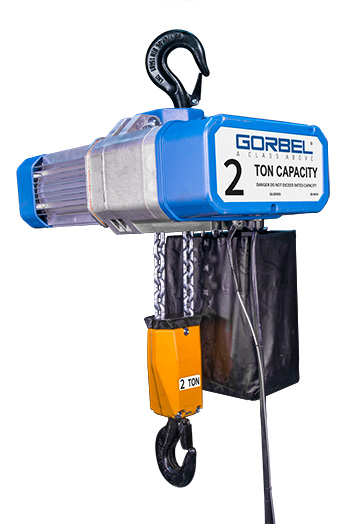

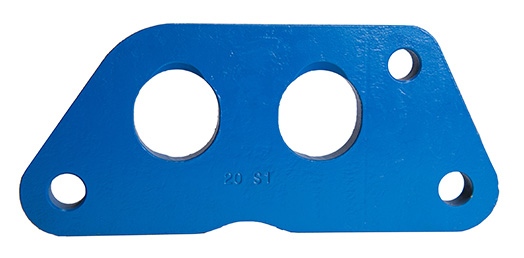

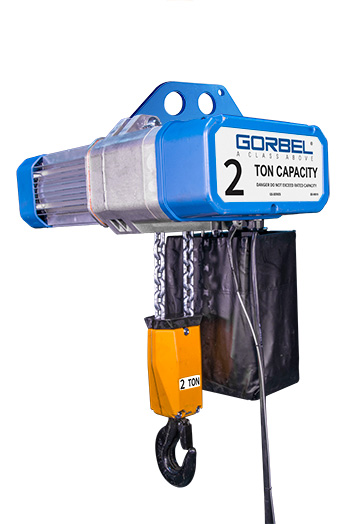

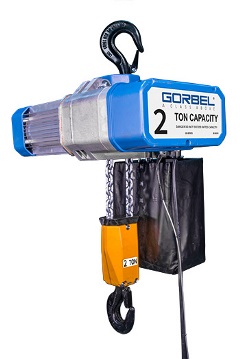

  • Single hole, double hole or hook mount configurations
  • Manual and Motor-driven trolley options
  • Optional plastic chain bucket; standard is canvas chain bag

Accessories (Add-Ons):

  • Ideal for low headroom applications
  • High production environments
  • Periodic lifting and positioning
